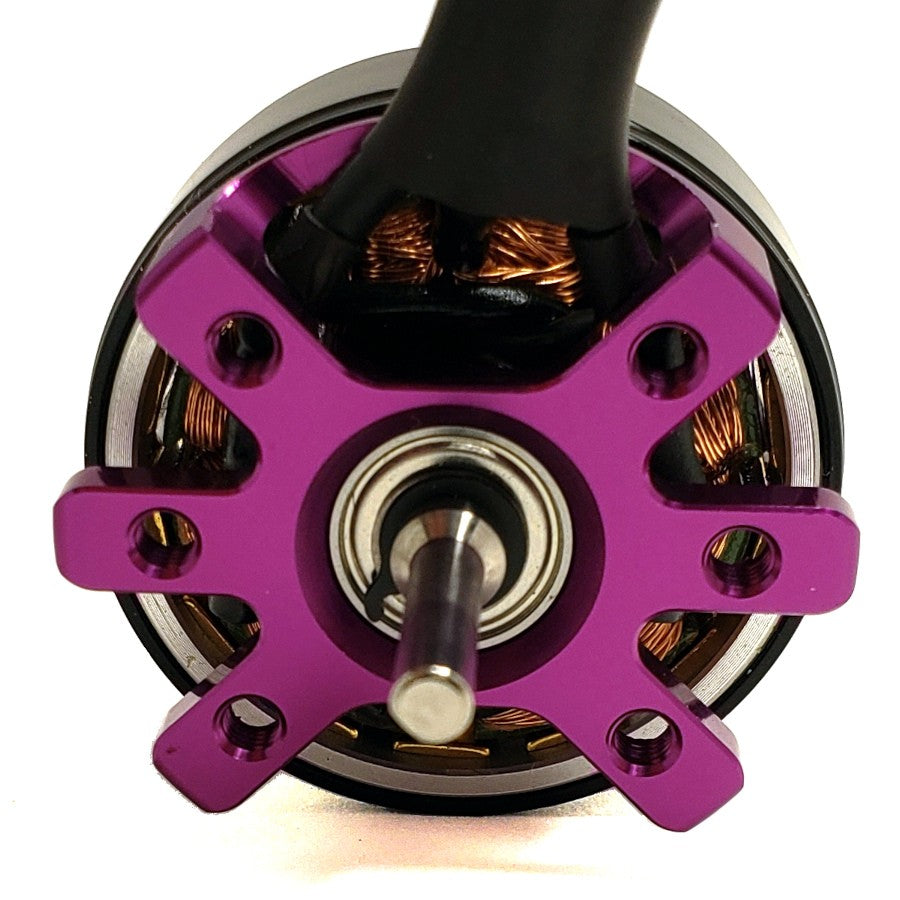

Holmes Hobbies REVOLVER 2023 SS TEAM SPEC 1900KV PURPLE

Revolver SS Team Spec *June 2023 batch*

• 1900kv
• 76 grams light with wires and bullets
• Grade 5 Titanium shaft
• Gold plated magnets
• v3 ultralight housing
• magnet retention system
• 25mm long housing
• 28x8mm 14 pole stator
• Holmes magnetics and housing design
• 2-4S LiPo power input

Revised magnetics for higher torque density, stronger hold brake, drag brake and tuned for AM32 startup! 100% Holmes custom engineered for competitive crawling rigs and scale rigs that need an extrememly small motor.

To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
