HOLMES HOBBIES TORQUEMASTER BR MINI DUAL

HOLMES HOBBIES TORQUEMASTER BR MINI DUAL

Regular price £174.99 GBP
Regular price Sale price £174.99 GBP
Sale Sold out
Tax included.

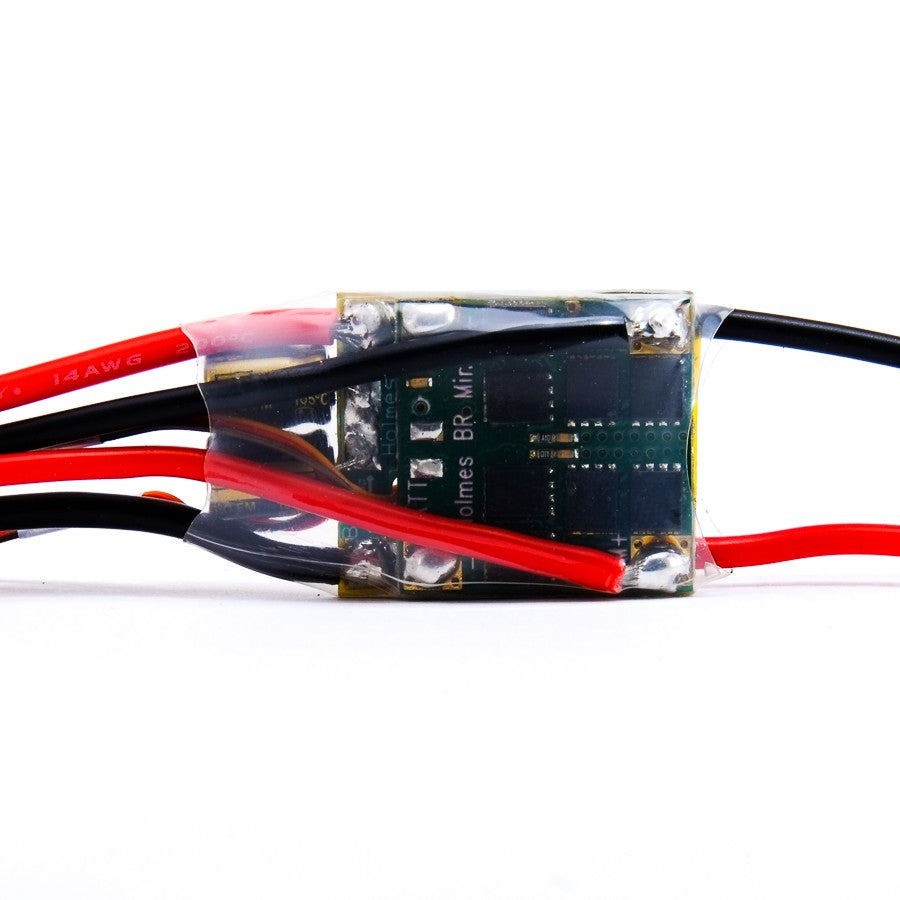

This is a high performance product, not a stock replacement part intended for a specific vehicle. As such, you will need to find your own system limits for each system. Happy tuning! The TorqueMaster BR Mini Dual is the shrunken version of the BR-XL with two ESCs stacked into one small package. Perfect for weight conscious crawlers, off road trucks, robotics, servomotor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density.

  • Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings
  • 1 year warranty
  • 6v to 25v input, external BEC suggested for all installations
  • 30a continuous, 80a burst
  • 6v 0.5amp linear BEC @ 7.4v input
  • Brushed only
  • Stick and Castle Link programming compatible
  • Reverse and brake adjustment
  • Throttle and Brake curve adjustment
  • Regenerative Drag Brake
  • Active Hold Brake (The Holmes Hold!)
  • Quiet mode
  • Built with 6" of 14g battery wire, 8" of 16g front exiting wire and 10" of 16g rear exiting wire

Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.

Current instruction sheet Click Here!
Please be sure to oreder a CASTLE 10A BEC if you would like one soldered along with your ESC. BEC power leads are soldered with the ESC power leads at the PCB or at the battery plug. If you select waterproofing for the ESC, the BEC will be waterproofed as well. Be aware Castle Creations Warranty is voided when BECs are waterproofed.
