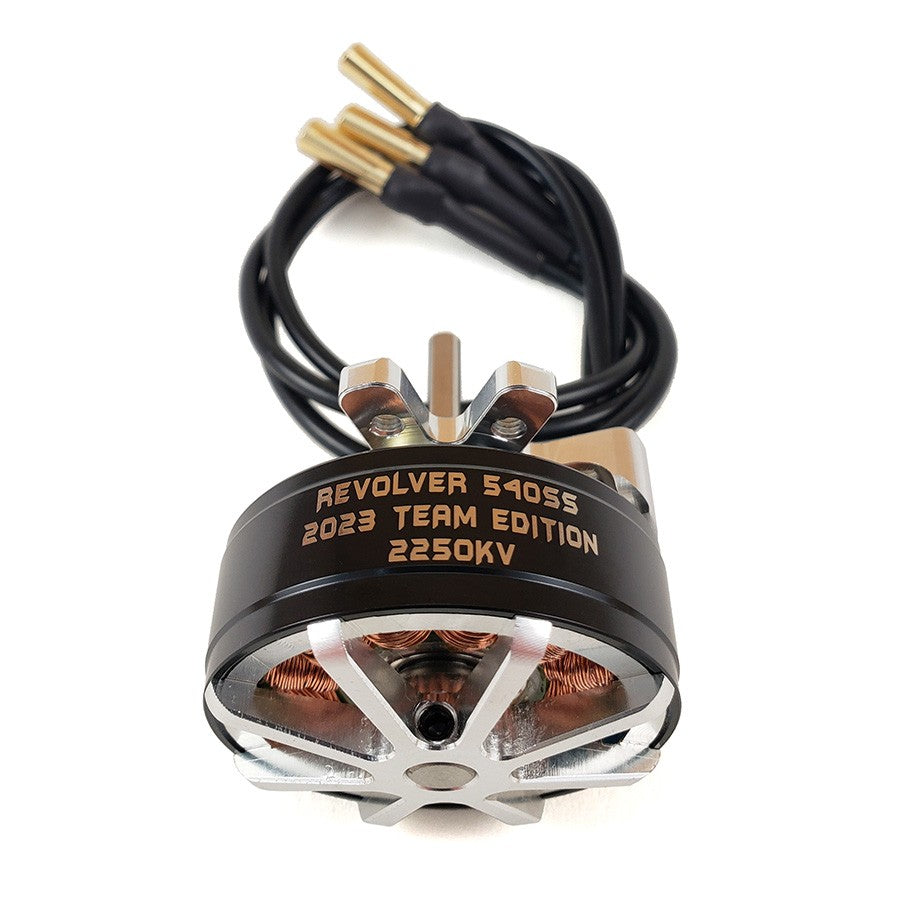

Holmes Hobbies REVOLVER 540 SS 2023 TEAM SPEC 2250KV

Revolver SS Team Spec *Dec 2023 batch*

• 2250kv
• 76 grams light with wires and bullets
• Grade 5 Titanium 1/8" diameter shaft
• Gold plated magnets
• 20% stronger magnets than regular Revolvers
• v3 ultralight housing
• magnet retention system
• 35.56 mm x 25mm long
• 28x8mm 14 pole stator
• Holmes magnetics and housing design
• 2-4S LiPo power input

2250kv Revised magnetics for higher torque density, stronger hold brake, drag brake and tuned for AM32 startup! 100% Holmes custom engineered for competitive crawling rigs and scale rigs that need an extrememly small motor.

To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
